Potentzia neurgailu optikoa

SAT-7E PON Potentzia-neurgailu optikoa

Tel: + 86 88115682

SAT-7E PON power meteris a special tester to test FTTx/PON passive optical network, it can synchronously measure voice, data and video signal on BPON/EPON/GPON framework. It also can set the power threshold and indicate the pass, alarm and fail of every wavelength.

Key Ezaugarriak
Test power value of 1490nm, 1550nm and 1310nm in PON system at the same time
Test burst mode of 1310nm up wavelength

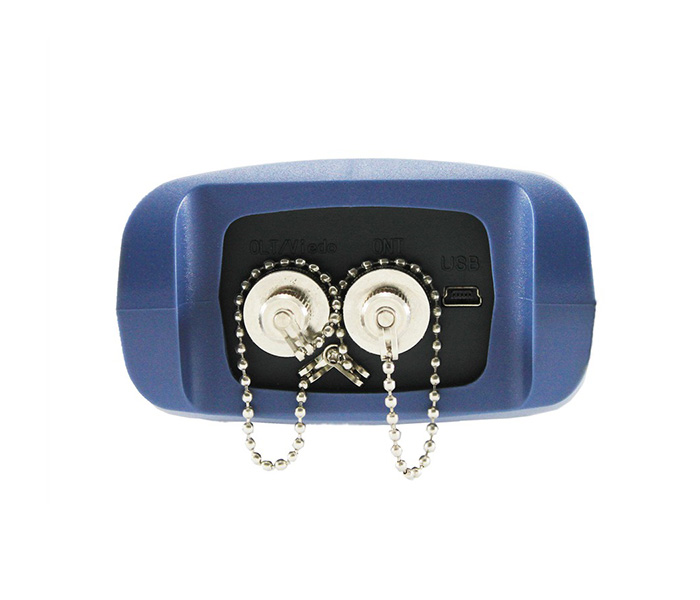

Dual-port and pass-through design, it guarantees communication from OLT to ONT during test.
Ten groups of threshold value, three indicators display the optical path state.
Transfer data to PC via USB interface
Store 99 records, and records can be viewed and deleted.
Set threshold, upload data and calibrate wavelength via software.
Auto power off, power off time from 5 to 60 minutes

aplikazioak
FTTx/PON open: test all PON signal during opening, and match the network standard.
FTTx/PON maintenance: test the transmission performance in daily maintenance.
Estimate power value of any position in network from OLT to ONT.

Harremanetarako formularioa

Sender*:

Emaila*:

Enpresa:

Herriko*:

Telefonoa:

Mezua*:

Calibrate Wavelength	1310nm Up	1490nm Down	1550nm Down
Pass Band (nm)	1260 1360 ~	1470 1505 ~	1535 1570 ~
Detection Range (dBm)	-40 10 + ~	-40 10 + ~	-40 25 + ~
Isolation of 1310nm (dB)	-	> 40	> 40
Isolation of 1490nm (dB)	> 40	-	> 30
Isolation of 1550nm (dB)	> 40	> 40	-
Accuracy of Measurement
Power Uncertainty (dB)	±0.5
PDL Polarization Dependent Loss (dB)	<±0.25
Linearity(dB)	±0.1
Through Insertion Loss(dB)	<1.5
Zehaztapen Orokorrak
Display	LCD:41/2
Unitatea	dB/dBm
Ebazpena	0.1dB
Energia hornidura	7.2V Ni-MH rechargeable battery
Zuntz optiko mota	SM
Funtzionamendu Tenperatura	-10 ~ 50 ℃
Biltegiratzeko tenperatura	-40 ~ 70 ℃
Neurria (mm)	L× H× W: 55×95×190

N º.	Item	Kopurua.
1	SAT-7E PON Optical power meter	1 multzo
2	Erabiltzailearen eskuliburua	Kopia 1
3	Attached disk	1 pieza
4	Qualified Certificate of products/Warranty Card	1 pieza
5	Enbalatzeko zerrenda	1 pieza
6	7.2V Rechargeable lithium battery (Built-in)	1 multzo
7	Data line	1 wire
8	Energia-iturri egokitzailea	1 pieza
9	ST, SC, FC adaptor (FC is on machine)	2 pcs per type
10	Soft Portable bag	1 pieza
